[Windows] Instrumentation Callback 응용하기 - syscall detect

GitHub - jungjin0003/Instrumentation-Callback

Instrumentation Callback을 통해 알 수 있는 것

지금까지의 포스팅만 봤을 때 Instrumentation Callback은 그저 syscall 어셈블리가 실행되었다는 정보 밖에 알 수 없었다. 하지만 Instrumentation Callback은 그 외에도 아래와 같은 정보들을 구할 수 있다.

• Original Return Address (sysret 가 되었을 때 원래 돌아가야 할 주소)
• Syscall Number
• Function Name

How Do I Get The Above Information?

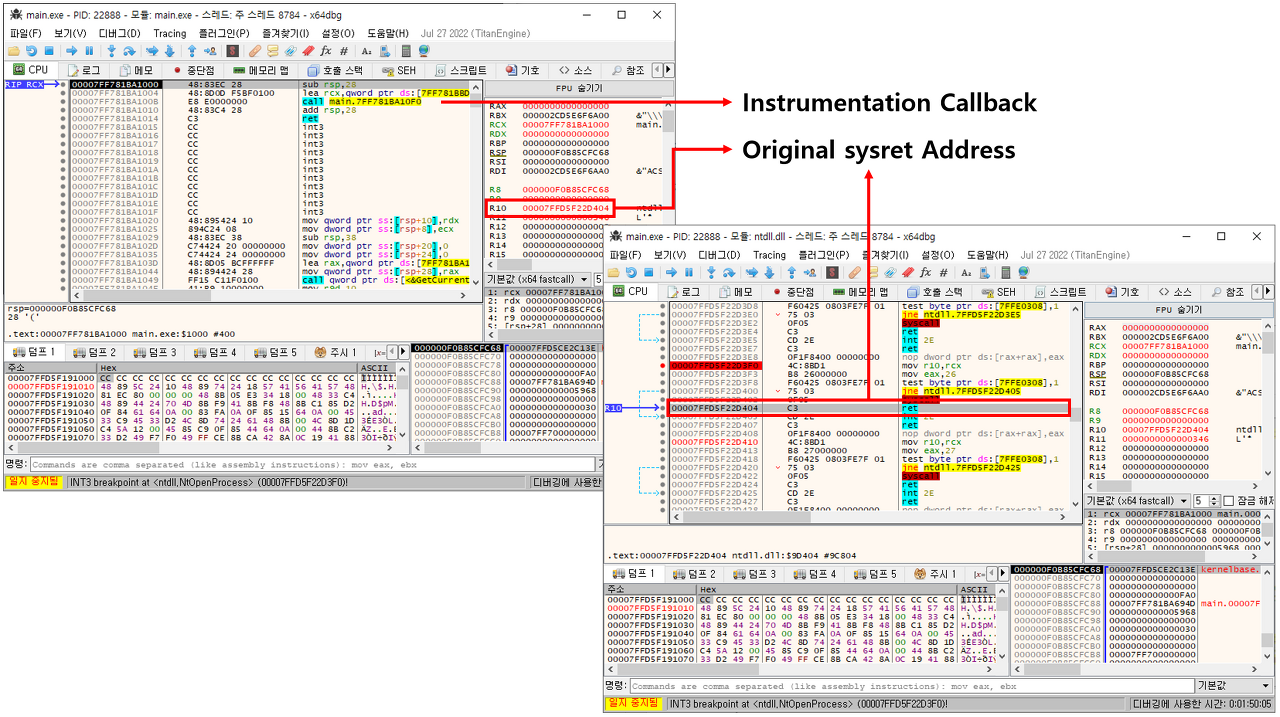

Instrumentation Callback으로 등록된 함수가 호출되었을 때 r10 레지스터에는 원래 돌아가야 할 리턴 주소가 기록되어 있다. 이를 보고 어떠한 커널 함수를 호출했는지 알아낼 수 있다.

What is The Syscall Detect?

결국 tracking와 크게 다를게 없다. 하지만 이번 응용하기에서 다른점은 syscall instruction을 호출한 주소가 실제 ntdll.dll 또는 win32u.dll가 아니라면 프로그램 실행을 중지하는 원리이다.

Sample

#include <stdio.h>
#include <windows.h>

#pragma comment (lib, "ntdll.lib")

#define PROCESS_INFO_CLASS_INTRUMENTATION 40
#define RIP_SANITY_CHECK(Rip,BaseAddress,ModuleSize) (Rip > BaseAddress) && (Rip < (BaseAddress + ModuleSize))

NTSYSAPI NTSTATUS NTAPI NtSetInformationProcess(HANDLE ProcessHandle, PROCESS_INFORMATION_CLASS ProcessInformationClass, PVOID ProcessInformation, ULONG ProcessInformationLength);

#ifdef __GUNC__
__declspec(naked) NTSTATUS SystemCall(ULONG number)
{
    __asm__ __volatile__ ("mov rax, r10");
    __asm__ __volatile__ ("syscall");
    __asm__ __volatile__ ("ret");
}
#elif _MSC_VER
extern PVOID GetSyscallReturnAddress();
extern NTSTATUS SystemCall(ULONG number);
#endif

typedef struct _PROCESS_INSTRUMENTATION_CALLBACK_INFORMATION
{
    ULONG Version;
    ULONG Reserved;
    PVOID Callback;
} PROCESS_INSTRUMENTATION_CALLBACK_INFORMATION, *PPROCESS_INSTRUMENTATION_CALLBACK_INFORMATION;

VOID CALLBACK InstrumentationCallback()
{
    static HANDLE NtdllBase;
    static HANDLE Win32uBase;

    PVOID ReturnAddress = NULL;

#ifdef __GNUC__
    __asm__ __volatile__ (
        "mov %[ReturnAddress], r10\n\t"
        :
        : [ReturnAddress] "m" (ReturnAddress)
    );
#elif _MSC_VER
    ReturnAddress = GetSyscallReturnAddress();
#else
#error This compiler is not supported. Please checck the compiler or target OS
#endif

    if (NtdllBase == NULL)
        NtdllBase = GetModuleHandleA("ntdll.dll");

    if (Win32uBase == NULL)
        Win32uBase = GetModuleHandleA("win32u.dll");

    DWORD NtdllSize = ((IMAGE_NT_HEADERS *)((ULONG_PTR)NtdllBase + ((IMAGE_DOS_HEADER *)NtdllBase)->e_lfanew))->OptionalHeader.SizeOfImage;
    DWORD Win32uSize = Win32uBase == NULL ? 0 : ((IMAGE_NT_HEADERS *)((ULONG_PTR)Win32uBase + ((IMAGE_DOS_HEADER *)Win32uBase)->e_lfanew))->OptionalHeader.SizeOfImage;

    if (!(RIP_SANITY_CHECK(ReturnAddress, (ULONG_PTR)NtdllBase, NtdllSize)) || (Win32uBase != NULL && !(RIP_SANITY_CHECK(ReturnAddress, (ULONG_PTR)Win32uBase, Win32uSize))))
    {
        printf("[SYSCALL-DETECT] Kernel returns to unverified module, preventing further execution!\n");
        __debugbreak();
    }

    return;
}

int main(int argc, char *argv[])
{
    PROCESS_INSTRUMENTATION_CALLBACK_INFORMATION nirvana;
    nirvana.Version = 0;
    nirvana.Reserved = 0;
    nirvana.Callback = InstrumentationCallback;

    NtSetInformationProcess(GetCurrentProcess(), PROCESS_INFO_CLASS_INTRUMENTATION, &nirvana, sizeof(PROCESS_INSTRUMENTATION_CALLBACK_INFORMATION));
    SystemCall(0x46); // NtYieldExecution

    printf("[SYSTEM] Successfully executed the syscall instruction\n");

    return 0;
}

MSVC 컴파일용 어셈블리

; File : extern.asm
_TEXT SEGMENT

PUBLIC GetSyscallReturnAddress
PUBLIC SystemCall

GetSyscallReturnAddress PROC
    mov rax, r10
    ret
GetSyscallReturnAddress ENDP

SystemCall PROC
    mov rax, rcx
    syscall
    ret
SystemCall ENDP

_TEXT ENDS

END

=====GCC=====
CommandLine : gcc.exe main.c -o main.exe -lntdll -masm=intel
=====MSVC====
CommandLine : ml64.exe /c extern.asm => result : extern.obj
CommandLink : cl.exe main.c extern.obj /Od /Z7 /link /MANIFEST:NO /DEBUG:FULL /OPT:REF /OPT:ICF /OPT:LBR

실행 결과

$ main.exe
[SYSCALL-DETECT] Kernel returns to unverified module, preventing further execution!

Reference

Detecting Manual Syscalls from User Mode - Winternl
